Truck Mounted Road Sweeper (VC-SHAKTI 6000)

A heavy-duty diesel sweeper engineered for highways, industrial yards and large paved areas. Its high-capacity hopper and dust-suppression spray system keep long sweeping runs efficient and compliant with dust-control norms.

Buy on GeM

Key Features

Heavy-duty diesel-powered sweeping system
High-capacity hopper for extended operation
Powerful suction with efficient dust suppression
Wide sweeping path for maximum productivity
Dual side brushes with central main brush
Durable chassis for demanding environments
Operator-friendly cabin with ergonomic controls
Suitable for highways, roads, airports, and industrial zones
Excellent performance on large outdoor surfaces
Low maintenance and fuel-efficient operation
Reliable hydraulic drive system
Designed for continuous municipal and commercial cleaning operations

Specifications

TECHNICAL SPECIFICATIONS
Model: VC-Shakti 6000
Overall Sweeping Width: 3000 mm
With Dual Brooms: 2650 mm
With One Brooms: 2200 mm

AUXILIARY ENGINE

Model: 4R1040TA
Induction System: Turbo
Combustion System: Direct Injection Diesel
Number of Cylinders: 4
Displacement: 4160 CC
Power Rating: 105 HP@ 2200 RPM
Cooling System: Liquid Cooled
Starter: 12 Volts, 2.8 Kw
Alternator: 12 Volts, 55 Kw
Battery: 12 Volts, 80 Ah
Oil Filter: Spin On
Air Cleaner: Dry Type
Safety Shutdown: Automatic

Electrical System

Display: 3.5
Outputs: Solid State / Relay
Protection: Fuse
Controls: 24 Volts

Debris Hopper

Capacity: 6 Cubic Meters
Construction: Heavy Gauge Mild Steel
Dumping: Hydraulic
Dumping Controls: In Cab
Dumping Height: 1250 mm
Dumping Tilt Angle: 45 Degrees
Interior Finish: Structural Steel
Exterior Finish: Painted
Wander Hose/Nozzle: 150 mm × 5000 mm Length

Suction Fan

Type: Centrifugal Fan
Drive: 4 XPB Section V Belt
No. of Blades: 10
Diameter: 810 mm
Mounting: 2 Sealed Bearing Units
Construction: Welded Mild Steel

Suction Fan Casing

Construction: Welded Mild Steel
Liner: Replaceable Rubber
Vacuum Enhancer: For Light/Heavy Material

Sweeping Head

Type: Dual Chamber Full Width Blast Orifice
Operating Direction: Forward
Suspension: Adjustable Spring Balance
Full Width: 2200 mm
Suction Hose Diameter: 350 mm
Blast Hose Diameter: 350 mm
Hose Construction: Reinforced Moulded Rubber Mild Steels
Controls: Hydraulic Raise & Lower

Hydraulic System

Type: Hydraulic Pump
Fluid Capacity: 70 Litres
Drive: Direct Drive
Filter: Cartridge Type
Strainer: 80 Mesh

Dust Control

Water: 500 Liters
Tank Construction: Welded Mild Steel
Fill Diameter: 50 mm (Pipe) / mm (Tank Opening)
Controls: Electric in Cab

Gutter Broom

Type: 4 Segment Steel Tined
Diameter: 650 mm
Drive: Hydraulic Motor
Speed: Variable Non Reversing
Tilt Adjustment: Electric in Cab

Lights

Side Brush: 1 Unit
Rear Door: 2 Units
Aux Engine Bay: 1 Unit

Overall Dimensions

Height: 2442 mm
Width: 2335 mm
Length: 5685 mm

Photos

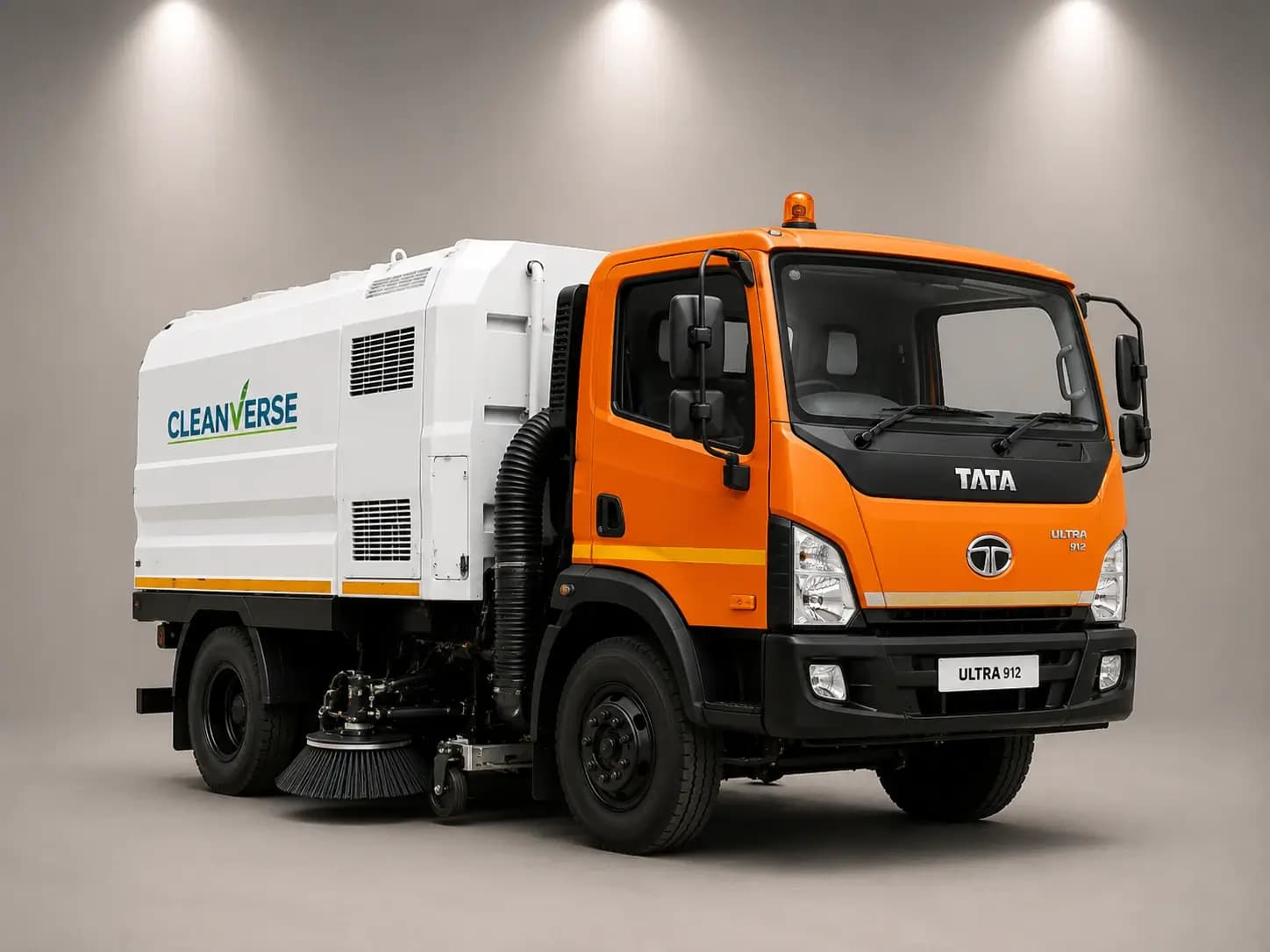

Truck Mounted Road Sweeper (VC-SHAKTI 6000) photo 1

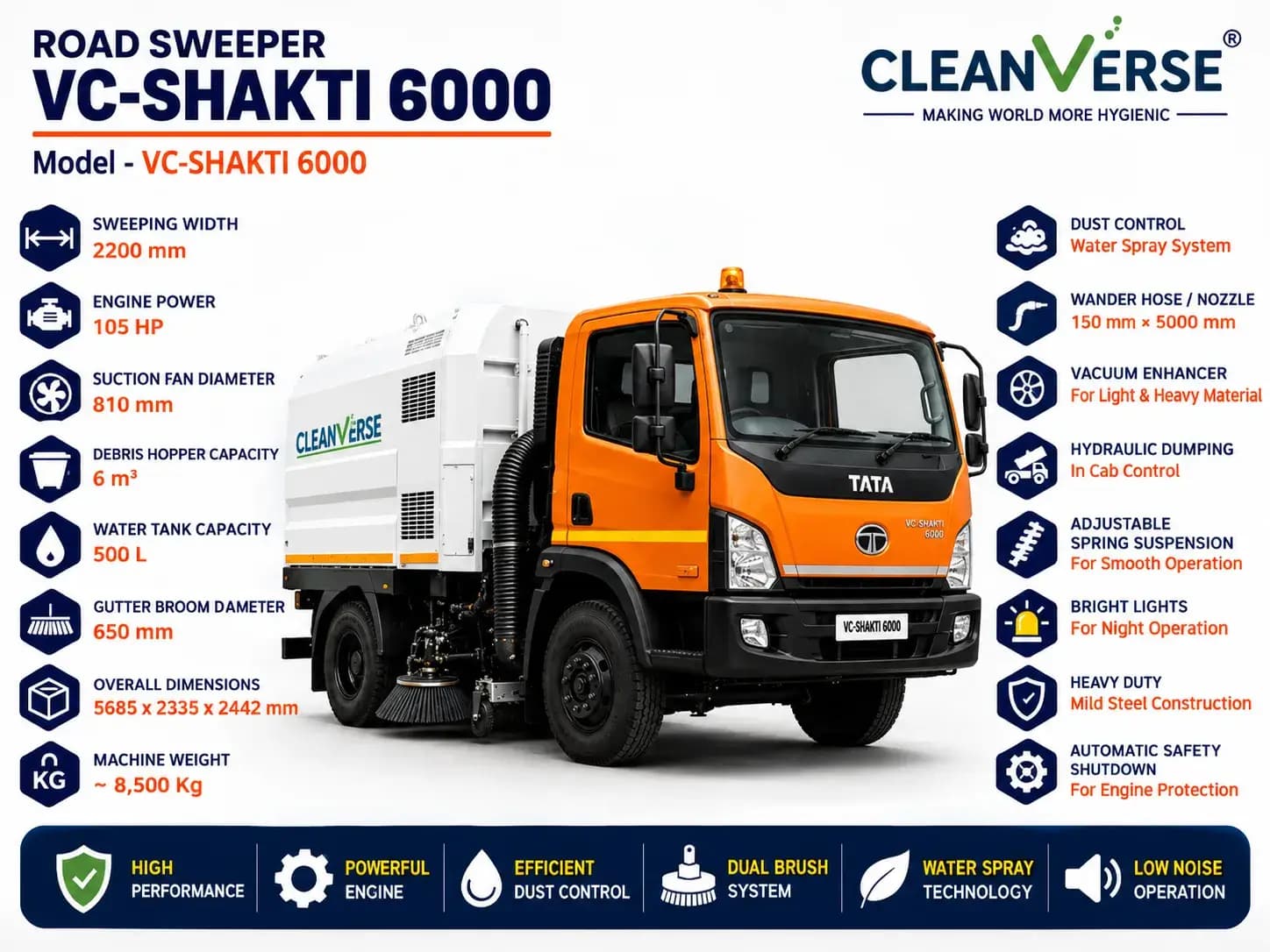

Truck Mounted Road Sweeper (VC-SHAKTI 6000) photo 2
